Single Arch Rubber Joint

Single Arch type rubber expansion joints completed with molded arch tube and solid floating flanges, the flange drilling can be drilling according to DIN PN10/16/25, ANSI class 150, JIS 10K or Table D/E, etc.

Single Arch Rubber Expansion Joint
Single Arch type rubber expansion joints completed with molded arch tube and solid floating flanges, the flange drilling can be drilling according to DIN PN10/16/25, ANSI class 150, JIS 10K or Table D/E, etc. It is the economical choice to absorb movements and stress on piping systems, compensate for pipe misalignment, reduce vibration and system noise. They also protect against start-up forces as well as system surges. Refer to the Product Data Sheets for more information.

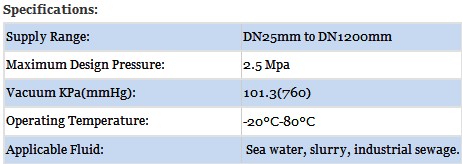

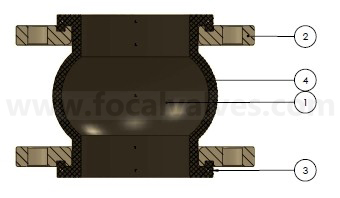

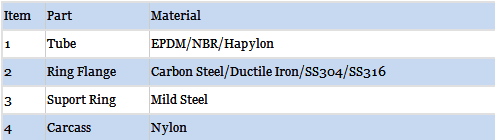

Features and Benefits
Economical, any flange standards available
Solid floating flanges, easy to install
High tensile aircraft cable is embedded in the raised face rubber ends to prevent pull out and avoids the sharp cutting edge of solid steel rings
No gaskets required







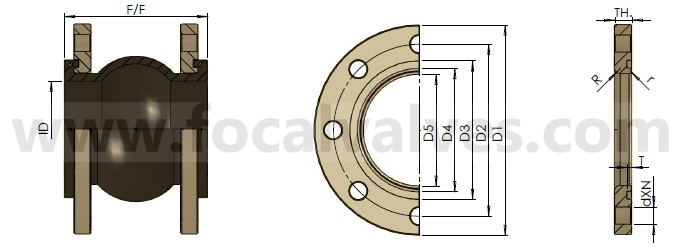

NOTES:
1. F/F length can be customized, detailed data can be offered upon request.
2. Control units must be used when piping is not properly anchored.
3. The rated pressure can be above2.5MPa, but products will only be sold with control units.
4. Pressure rating is based on 30℃ operating temperature. The pressure rating is reduced at higher temperatures.
5. Weights in the above table are joints with DIN PN16 drilling retaining ring flanges.

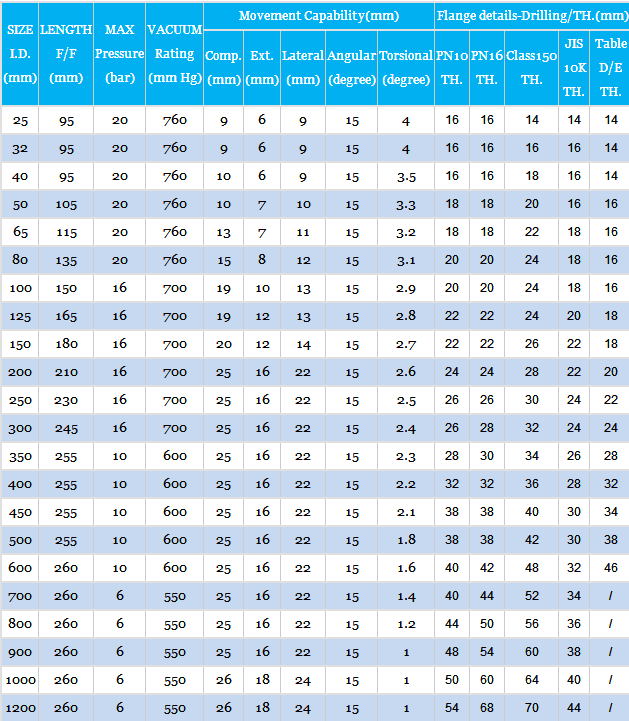

6. Movements shown in the above table are non-concurrent.
7. Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times " work pressure".
8. Normally, the flange drilling is based on DIN PN16, ANSI 150/250/300 lbs, BS PN10, JIS 10K are also available upon request.
