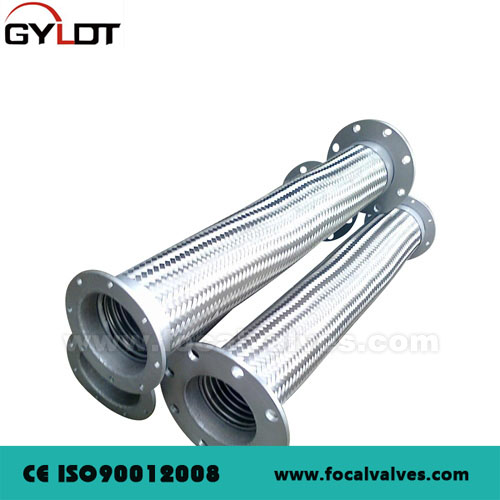

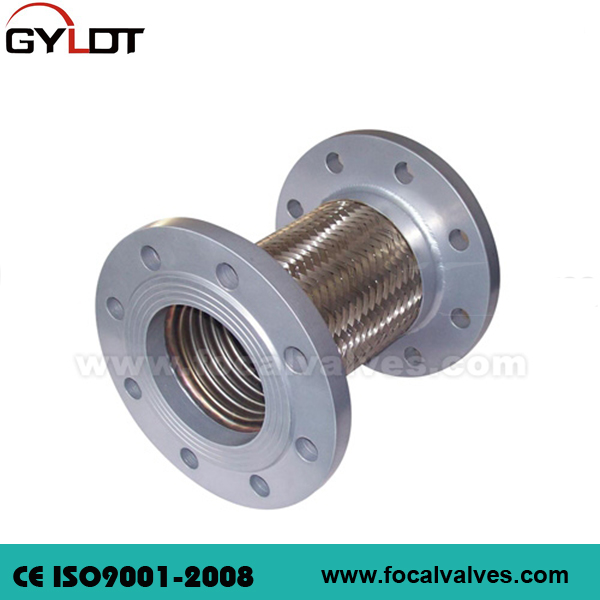

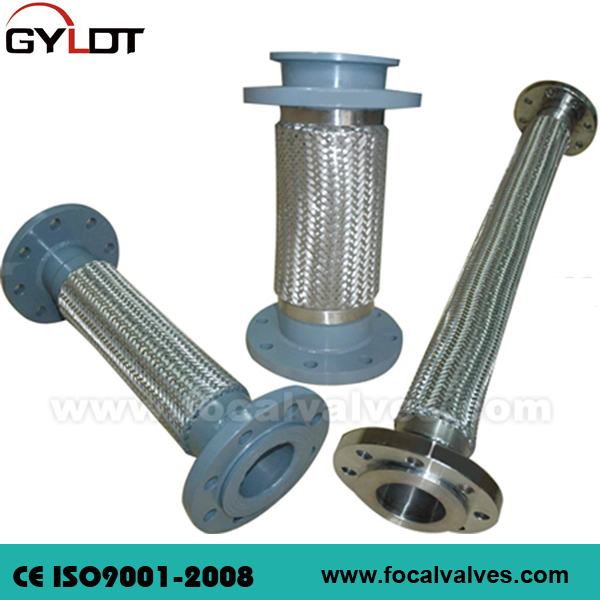

Stainless Steel Braided Hose
Stainless Steel Braided Hoses are braided corrugated hose design to resist high working pressure, all stainless steel construction contributing to the solution of piping system problems. It is used to absorb pipe movements, relieve stress, reduce system noise/vibration, compensate for misalignment/offset and protect rotating mechanical equipment against start-up surge forces. Assemblies are designed for both high and low temperatures, as well as high pressure.
Features and Benefit:
·Compensate misalignment, absorbs vibrations in the pipeline
·Lateral Movement Absorbing
·Wide Size and Service Range
·Special for high pressure, prevent damage of leakage
·For both high and low temperatures
·Materials available upon request
Looking for ideal Stainless Steel Braided Hose Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Braided Ss Hose are quality guaranteed. We are China Origin Factory of Braided Stainless Hose. If you have any question, please feel free to contact us.
Specifications
| Nominal diameter: | DN15mm to DN500mm, special design available |
| Maximum working pressure: | 10.0 Mpa |
| Vacuum KPa(mmHg) | 44.9(350) |
| Operating temperature: | -60℃-280℃ |
| Corrosion resistance | Excellent |
| Applicable media | Sea water, drinking water, exhaust, industrial sewage. |
|
SIZE
|
LATERAL OFFSET
|
WORKING PRESS.(BAR)
|
PROX.
|
||
|

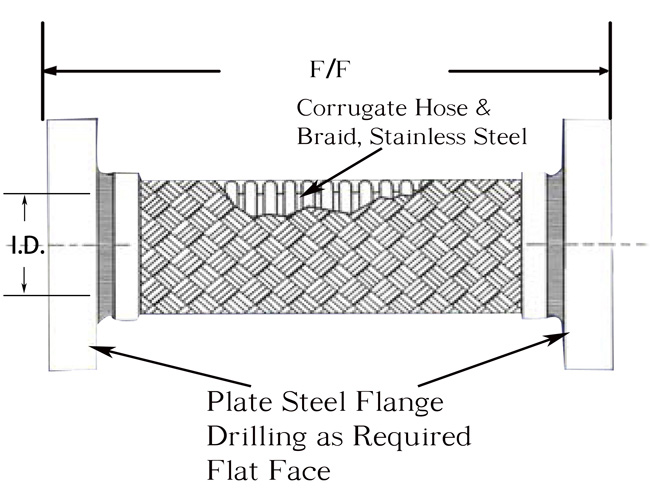

I.D.×F/F (mm)
|
Intermittent (mm)
|
Permanent (mm)
|
20℃
|
150℃
|
Weitht (kg)
|
|
40×229
|
3
|
9
|
33
|
28
|
6
|
|
40×305
|
25
|
35
|
33
|
28
|
6
|
|
40×457
|
56
|
80
|
33
|
28
|
7
|
|
40×610
|
73
|
112
|
33
|
28
|
8
|
|
50×225
|
3
|
9
|
30
|
25
|
7
|
|
50×305
|
19
|
25
|
30
|
25
|
7
|
|
50×457
|
44
|
63
|
30
|
25
|
8
|
|
50×610
|
63
|
82
|
30
|
25
|
9
|
|
65×225
|
3
|
9
|
25
|
20
|
9
|
|
65×305
|
15
|
22
|
25
|
20
|
10
|
|
65×457
|
38
|
52
|
25
|
20
|
11
|
|
65×610
|
57
|
75
|
25
|
20
|
13
|
|
80×225
|
3
|
9
|
19
|
17
|
10
|
|
80×305
|
13
|
20
|
19
|
17
|
11
|
|
80×457
|
32
|
48
|
19
|
17
|
13
|
|
80×610
|
50
|
67
|
19
|
17
|
15
|
|
80×914
|
101
|
125
|
19
|
17
|
19
|
|
100×225
|
3
|
9
|
16
|
14
|
12
|
|
100×305
|
10
|
18
|
16
|
14
|
14
|
|
100×457
|
19
|
28
|
16
|
14
|
16
|
|
100×610
|
43
|
61
|
16
|
14
|
18
|
|
100×914
|
83
|
107
|
16
|
14
|
22
|
|
125×305
|
3
|
9
|
14
|
13
|
16
|
|
125×457
|
15
|
20
|
14
|
13
|
19
|
|
125×610
|
38
|
54
|
14
|
13
|
21
|
|
125×914
|
76
|
98
|
14
|
13
|
25
|
|
150×305
|
3
|
9
|
13
|
12
|
19
|
|
150×457
|
12
|
17
|
13
|
12
|
21
|
|
150×610
|
32
|
48
|
13
|
12
|
23
|
|
150×914
|
69
|
83
|
13
|
12
|
28
|
|
200×305
|
3
|
9
|
13
|
11
|
26
|
|
200×457
|
9
|
15
|
13
|
11
|
29
|
|
200×610
|
25
|
43
|
13
|
11
|
33
|
|
200×914
|
50
|
77
|
11
|
10
|
39
|
|
250×330
|
3
|
9
|
11
|
10
|
40
|
|
250×457
|
6
|
12
|
11
|
10
|
43
|
|
250×610
|
19
|
33
|
11
|
10
|
46
|
|
250×914
|
38
|
52
|
11
|
10
|
52
|
|
300×356
|
3
|
9
|
9
|
8
|
51
|
|
300×610
|
12
|
20
|
9
|
8
|
58
|
|
300×914
|
25
|
42
|
9
|
8
|
65
|
|
350×356
|
3
|
9
|
7
|
6
|
72
|
|
350×914
|
25
|
40
|
7
|
6
|
88
|
|
400×406
|
3
|
9
|
7
|
6
|
97
|
|
400×914
|
20
|
35
|
7
|
6
|
110
|
1. The weight is approximate without welding flange
2. Floating flange can be provided
3. Connection flange can be drilled as request
4. The material of flange is carbon steel, painted, other material available up on request
5. The material of bellows is stainless steel 304, other material available upon request
6. The material of braid is stainless steel 304, other material available upon request
