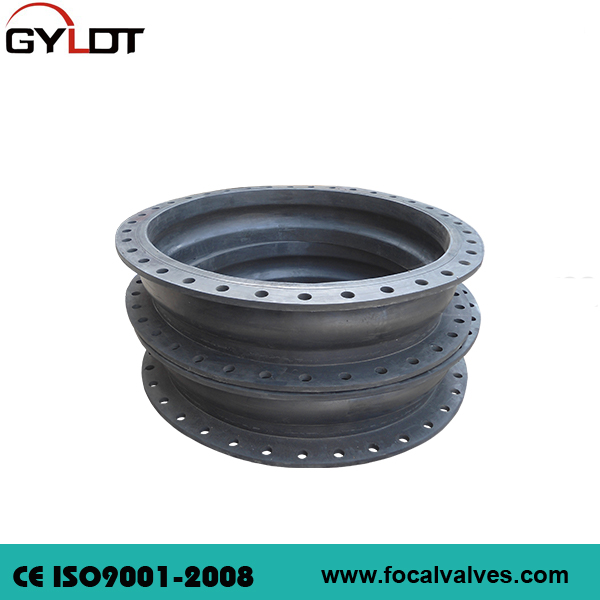

Wide Arch Rubber Joint

Full face type rubber expansion joints are molded wide arch designed, completed with full face rubber flanges, with no embedded metal ring. All rubber impregnated construction will extend service life.

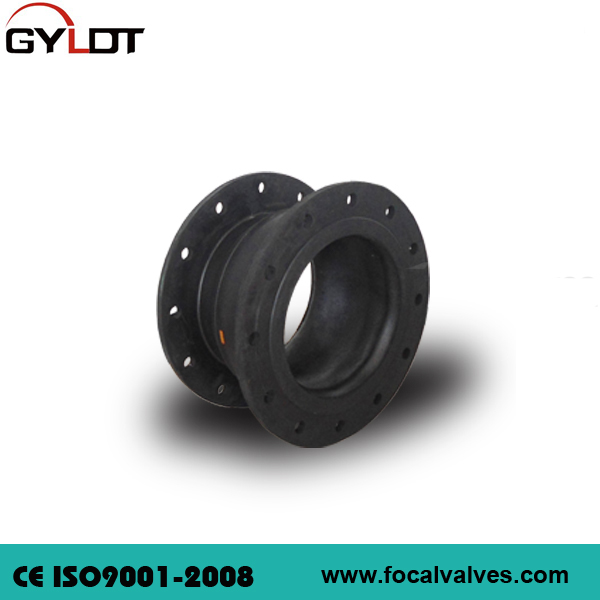

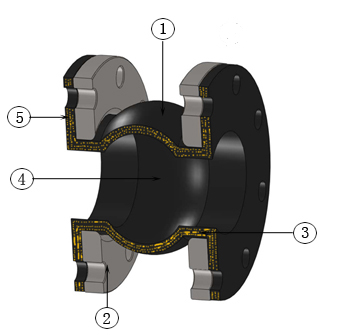

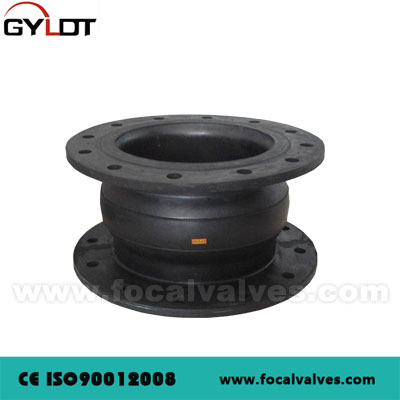

Full Face Type Rubber Expansion Joint
Full face type rubber expansion joints are molded wide arch designed, completed with full face rubber flanges, with no embedded metal ring. All rubber impregnated construction will extend service life, molded integral rubber flange prevents pushing out under pressure, but only DIN and part of ANSI drilling available, other drilling standard only supply on request.

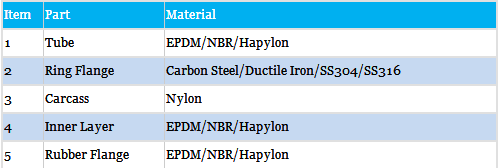

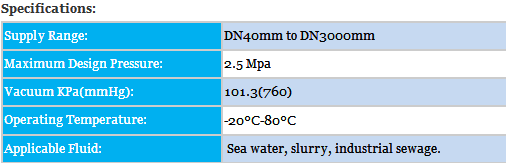

Features and Benefit:
Absorbs directional movement
Absorbs vibration, noise and shock
Compensates for more misalignment
Wide flowing arch design
Integral rubber flange design, prevent rubber end pulling out
No gaskets required; integrally rubber flanged design






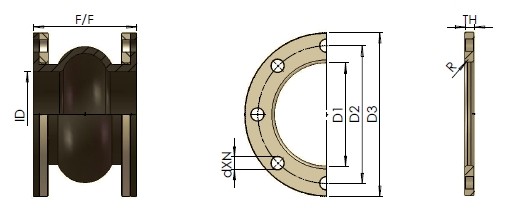

Notes:
1. Supply range can be more than DN3000, detailed data can be offered upon request.
2. Control units must be used when piping is not properly anchored.
3. The rated pressure 2.5MPa products will only be sold with control units.
4. Pressure rating is based on 30℃ operating temperature. The pressure rating is reduced at higher temperatures.
5. Weights in the above table are joints with DIN PN16 drilling retaining ring flanges.
6. Movements shown in the above table are non-concurrent.
7. Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 3 times " work pressure".
8. Normally, the flange drilling is based on DIN PN16, ANSI 150/250/300 lbs, BS PN10, JIS 10K are also available upon request.
