Composite Material Flap Valve Cost-Effective Valve Superior Quality Backflow Prevention Supply Range is From DN300mm to DN3000mm Low Headloss and Maintenance Free

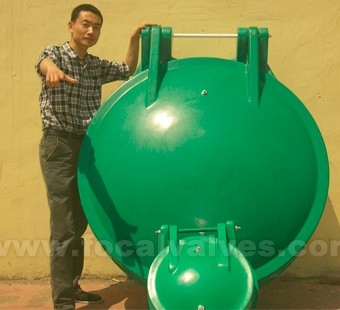

Composite Material(FRP) Flap Valve
FRP(Fiber Reinforced Plastics)
Features and Benifits
Customized Shape or Other Shape Available
Reliable backflow prevention
Smart design eliminates maintenance
Corrosion resistant, will not warp or freeze open or shut
No cracking pressure needed, low head loss, can be completely open to flood discharge
Environmentally-friendly
Looking for ideal Composite Material Flap Valves Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Flap Valves are quality guaranteed. We are China Origin Factory of Material Flap Valves. If you have any question, please feel free to contact us.
Specifications
| Nominal diameter: | DN300mm to DN3000mm, other sizes available |
| Maximum working pressure: | 5.0 meter water |
| Operating temperature: | -20℃ - 60℃ |
| Opening angle | >60° |
| Corrosion resistance | Yes |
| Applicable media | water, river water, seawater, living water, industrial sewage. |

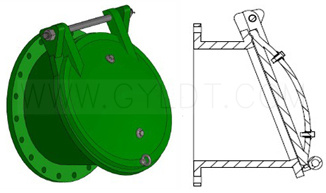

Components/Materials/Functions
|
 |

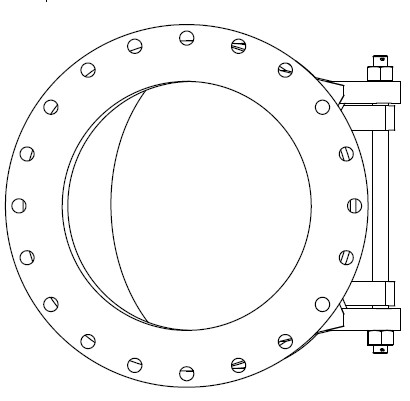

Integrate FRP Flange Note: Usually the flange drilling standard is based on DIN PN6, other standards avaible as ANSI CLASS150/300, DIN PN16/25, JIS10 etc. For special application, please contact GYLDT for detailed design. |

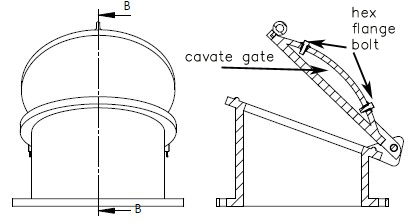

 The FRP density is usually 1.8-2.1g/cm which is about steel 1 / 4, the smart cavate gate design would allow change specific gravity to adapt to flow rate. |
