Customized Duckbill Valve

Duckbill check valves are widely used in the demanding applications of many industries, are precision-molded, one-piece elastomeric valves that provide reliable backflow prevention at low pressure differentials.

Duckbill Check Valve
Duckbill check valves are widely used in the demanding applications of many industries, are precision-molded, one-piece elastomeric valves that provide reliable backflow prevention at low pressure differentials.  Duckbill check valves allow free flow with positive differential pressure.  With negative differential pressure, backflow is checked.  Pressure drop across the valve is a feature unique to duckbill check valves.  They can be designed to operate in a few millimeters (inches) of water to several hundred KPa (psi), depending on valve size, geometry and compound characteristics.  Duckbill check valves are also designed to start functioning at specific opening and closing pressure ranges, depending on your specifications.

Features and Benefit
·Reliable backflow prevention
·100% elastomeric construction eliminates maintenance forged gate valves
·Will not corrode, warp bronze gate valve or freeze open or shut
·1"-2" Cracking Pressure, Low Head loss
·Curved Bill enhances sealing around debris
·Custom built for each application based on pressure and flow conditions
·Available in diameters from 1/2" (12mm) to 96" (2400mm)

Looking for ideal Duckbill Check Valve Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Rubber Duckbill Check Valve are quality guaranteed. We are China Origin Factory of Duckbill Valve. If you have any question, please feel free to contact us.


Customized Duckbill Valves


The series of Customized Duckbill Valves is provided for customers' special requirements, we can manufacture
duckbill valves as per different shape with different rubber, and the connection will as per request for special location
and application. But GYLDT makes Customized Duckbill Valves no stock in inventory, we produce as per requirement.
Contact GYLDT for more information when you design for a drainage system.

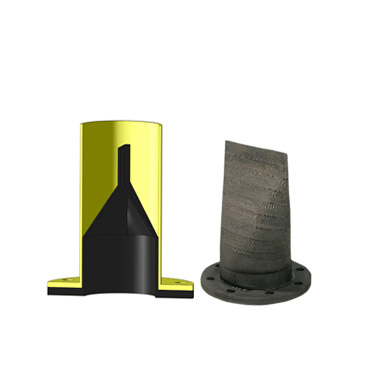

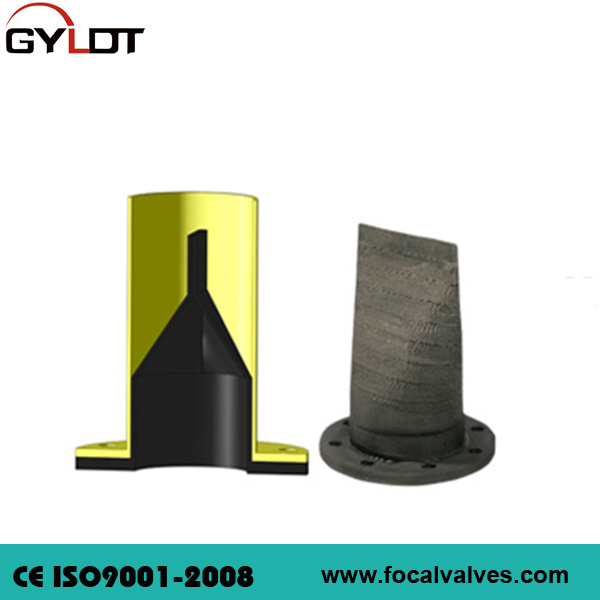

Flanged in-line Duckbill Valves


The Flanged Duckbill Valve in-line Type is manufactured with a nylon reinforced rubber flange design, which is used to
be bolted between the pipe flanges, and the valves can act as part of the pipe line, no need for spare space.Normally,
GYLDT manufactures in-line Type duckbill valves from DN50mm to DN1800mm.

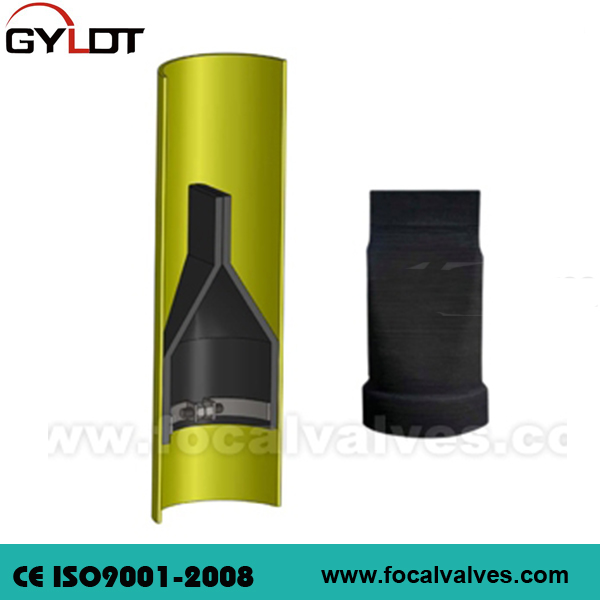

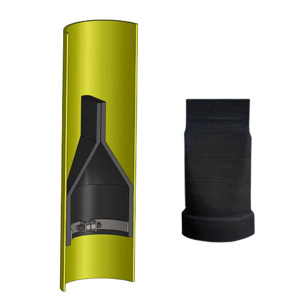

Slip in-line Duckbill Valves


The series Duckbill Valve Slip In is a similar shape as series Duckbill Valve Slip On, but is a slip-in design. It is special
manufactured for application where there is no flange joint, can be easily inserted the pipe. And the valves can act as
part of the pipe line, no need for spare space. Normally, GYLDT manufactures Slip In type duckbill valves from DN50
mm to DN1800mm.

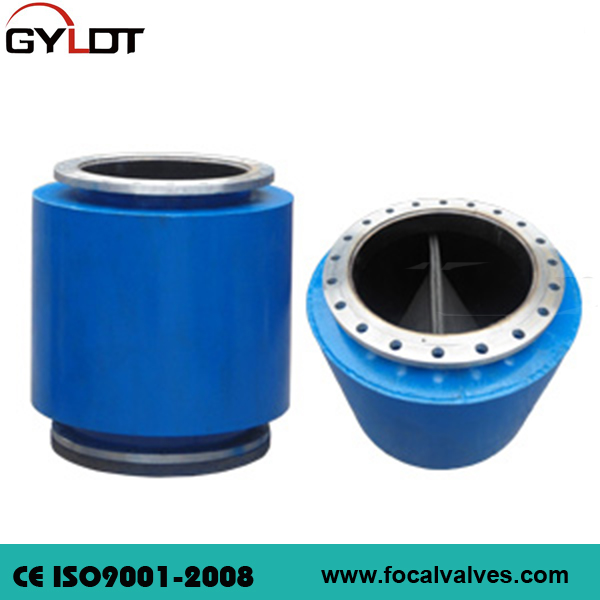

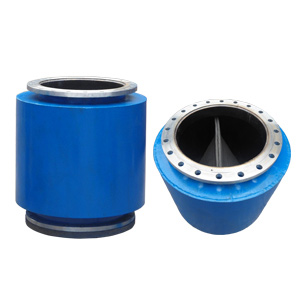

Housed Duckbill Valves


The Duckbill Valve Series Housed Type is manufactured exactly the same as Flanged Type in rubber valve body, but
finished with a carbon steel shell, which makes the Series Housed duckbill valve a part of the pipe line. The Valves
can be installed easily between the pipes with flanges. Normally, GYLDT manufactures Housed duckbill valves from
DN150mm to DN1200mm.
