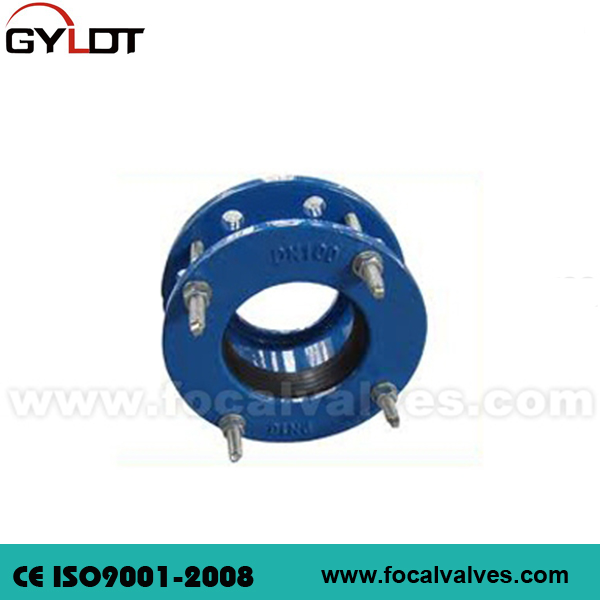

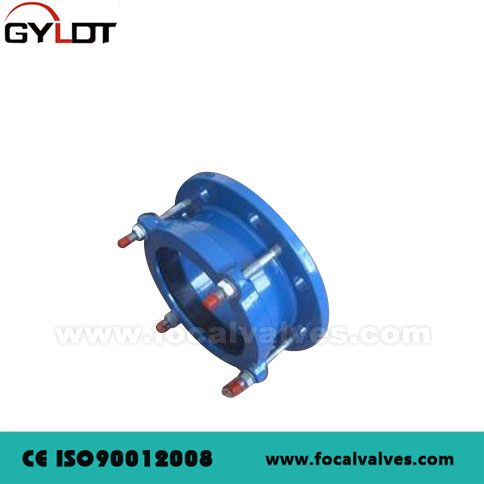

Flange Adaptor
Flange adaptors are the most basic type of dismantling joint. On one side, it has a flange connection in accordance with the required flange standard, on the other an insertion socket for the pipe. A variety of standard pipe types can be connected.
Features and Benefit:
·Compensate misalignment, absorbs vibrations in the pipeline
·Simplify the installation of pipelines
·Overcomes axial offset and guarantees a permanently leaktight connection
·Flange connection, flange drilling can base on DIN PN6/16/25, ANSI CLASS150/300, JIS, EN, etc
·Easy installation, reduce assembling time
·Epoxy powder coating and bolting made of steel
·Drinking water approved
Looking for ideal Flange Adaptor Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Flange Adaptor Coupling are quality guaranteed. We are China Origin Factory of Universal Flange Adaptor. If you have any question, please feel free to contact us.
Specifications
|
Nominal diameter:
|
DN50mm to DN3000mm
|
|
Maximum working pressure:
|
4.0 Mpa
|
|
Vacuum KPa(mmHg)
|
44.9(350)
|
|
Operating temperature:
|
-20℃-80℃
|
|
Corrosion resistance
|
Good
|
|
Applicable media
|
Sea water, drinking water, slurry, industrial sewage.
|

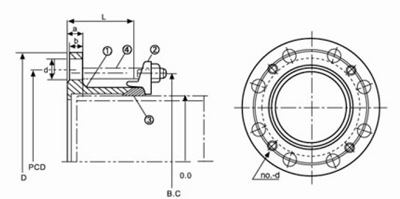

Components/Materials/Functions
|
No.
|
Components
|
Materials
|
 |
|
1
|
Flange Adaptor
|
Ductile Iron
|
|
|
2
|
Gland
|
Ductile Iron
|
|
|
3
|
Gasket
|
Rubber
|
|
|
4
|
Bolt & Nut
|
Carbon Steel
|
·Flanges are according to DIN PN10, ANSI/JIS/EN standard can be supplied upon request.
·Design Pressure: 10 bar.
·Rubber: EPDM, NBR, NEOPRENE or upon request.
·Materials are various to meet per requirement.
Data Sheet:
|
DN
|
O.D.
|
D
|
PCD
|
a
|
b
|
L
|
d
|
no.
|
B.C.
|
WEIGHT(kg)
|
|
80
|
98
|
200
|
160
|
19.0
|
16.0
|
70
|
19
|
8
|
166
|
8.0
|
|
100
|
118
|
220
|
180
|
19.0
|
16.0
|
70
|
19
|
8
|
187
|
10.0
|
|
125
|
170
|
285
|
240
|
19.0
|
16.0
|
75
|
23
|
8
|
240
|
15.0
|
|
150
|
222
|
340
|
295
|
20.0
|
17.0
|
75
|
23
|
8
|
293
|
21.0
|
|
200
|
274
|
400
|
350
|
22.0
|
19.0
|
90
|
23
|
12
|
346
|
25.0
|
|
250
|
326
|
455
|
400
|
24.5
|
20.5
|
90
|
23
|
12
|
410
|
34.0
|
|
300
|
378
|
505
|
460
|
24.5
|
20.5
|
100
|
23
|
16
|
469
|
42.3
|
|
350
|
429
|
565
|
515
|
24.5
|
20.5
|
100
|
28
|
16
|
521
|
50.0
|
|
400
|
480
|
615
|
565
|
25.5
|
21.5
|
110
|
28
|
20
|
573
|
55.0
|
|
450
|
532
|
670
|
620
|
26.5
|
22.5
|
110
|
28
|
20
|
626
|
62.0
|
|
500
|
635
|
780
|
725
|
30.0
|
25.0
|
115
|
31
|
20
|
730
|
104.0
|
|
600
|
738
|
895
|
840
|
32.5
|
27.5
|
115
|
31
|
24
|
837
|
139.0
|
|
700
|
842
|
1015
|
950
|
35.0
|
30.0
|
115
|
34
|
24
|
943
|
160.0
|
|
800
|
945
|
1115
|
1050
|
37.5
|
32.5
|
115
|
34
|
28
|
1047
|
220.0
|
|
900
|
1048
|
1230
|
1160
|
40.0
|
35.0
|
115
|
37
|
28
|
1159
|
265.0
|
|
1000
|
1152
|
1340
|
1270
|
42.5
|
37.5
|
115
|
37
|
32
|
1264
|
247.5
|
|
1200
|
1255
|
1455
|
1380
|
45.0
|
40.0
|
115
|
40
|
32
|
1368
|
310.0
|
