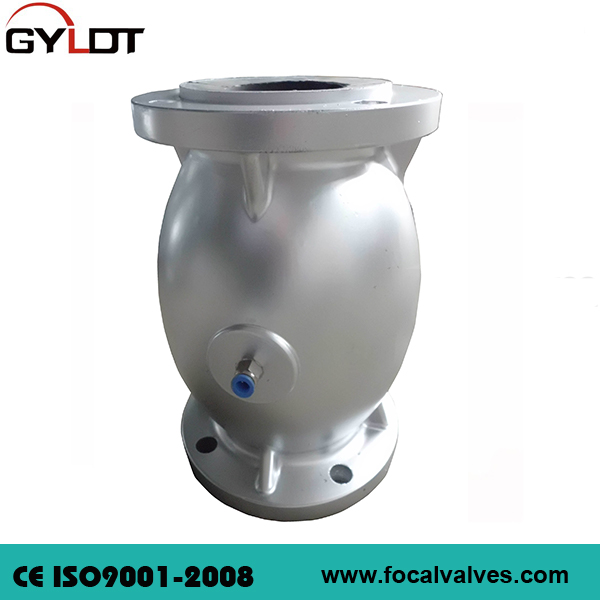

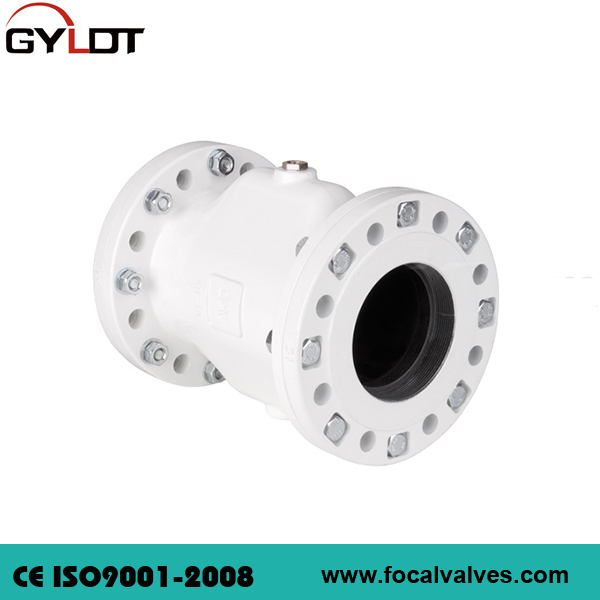

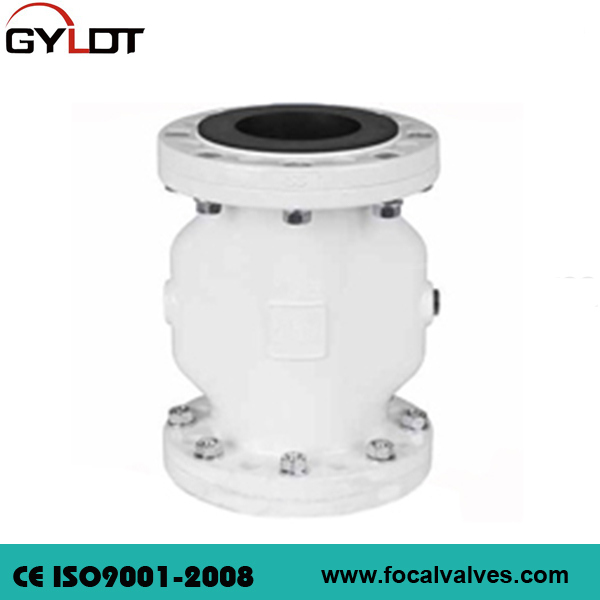

Flange Air Pinch Valve

An Air pinch valve is a pinch valve. Air or liquid pressure is inserted in the cavity of AIR PINCH VALVE - at the control inlet collapses the internal rubber sleeve to provide immediate and positive shut-off.

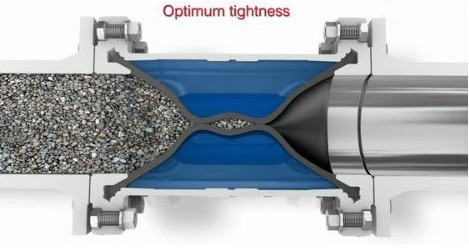

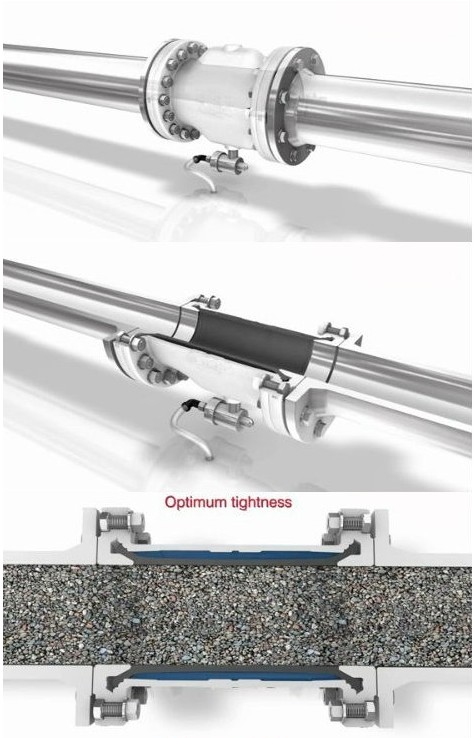

An Air pinch valve is a pinch valve. Air or liquid pressure is inserted in the cavity of AIR PINCH VALVE - at the control inlet collapses the internal rubber sleeve to provide immediate and positive shut-off. The rubber sleeve closes completely, even on large particulate matter, abrasive and corrosive materials. When open, the sleeve allows full, unobstructed flow with little turbulence. Air pinch valve sleeves can be easily and economically replaced when they wear out. It works by the controlling medium of air pressure or water being used between the Pinch Valve body and the sleeve to give 100% closure (even against the larger abrasive particles) of the Pinch Valve. Exhausting the pressure causes the Pinch Valve to open. When open the sleeve is a true bore allowing unobstructed medium to flow through.

Product Features:
1. Very Clean
2. Excellent drainage
3. Minimal turbulence
4. Low airborne contaminants
5. Low maintenance
6. Low weight
7. Can be used in explosion-proof lines
8. Inexpensive

Looking for ideal Flange Air Pinch Valve Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Flange Air Pinch Valve are quality guaranteed. We are China Origin Factory of Flange Air Pinch Valve. If you have any question, please feel free to contact us.

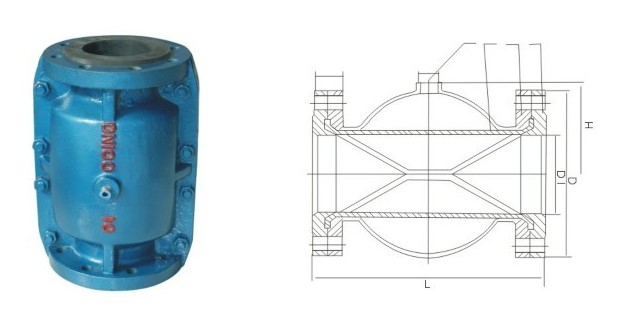

Specifications:



SIZE 40 50 65 80 100 125 150 200 250 300
DIMENSIONS L 150 180 180 220 276 345 414 550 680 820
H 40 60 60 75 95 120 145 183 229 278
I 26 27 23 30 36 48 52 65 82 98
D 150 155 200 200 220 250 285 340 405 480
    PN10 PN10 PN10 PN10 PN10 PN10 PN10 PN10 PN10 PN10
