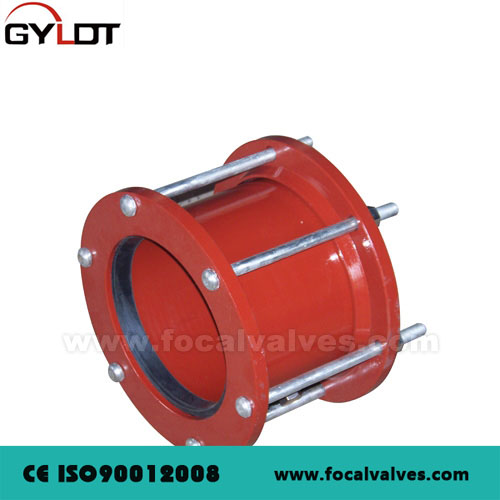

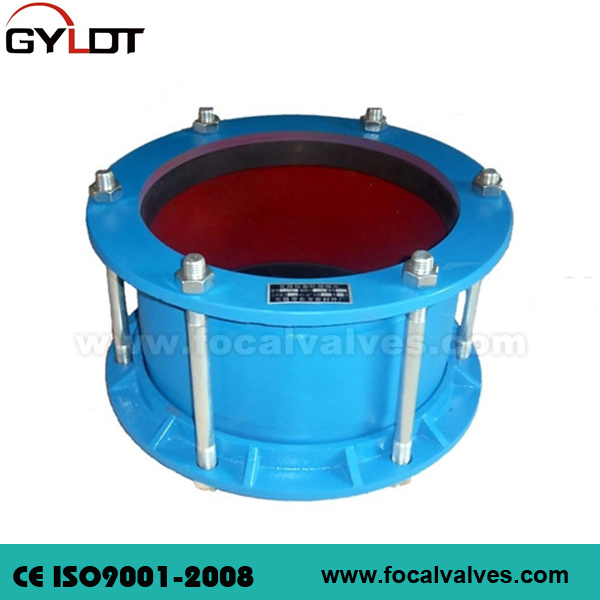

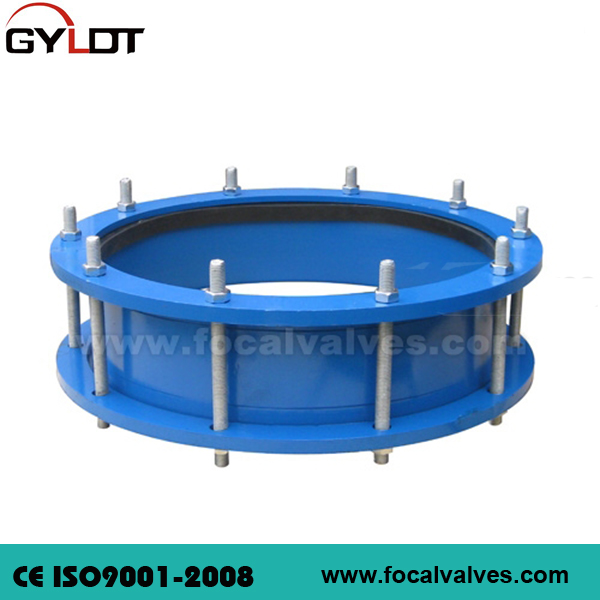

Flexible couplings are the flexible solution for joining pipes. These couplings are ideal for absorbing noises and vibrations in pipelines and overcoming axial offset, guaranteeing a permanently leaktight connection.Flexible coupling allows an expansion and contraction of ± 2.5 mm and an angular deflection of 3°for each gasket (±5 mm & 6°in total for each coupling).
Features and Benefit:
·Compensate misalignment, absorbs vibrations in the pipeline
·Simplify the installation of pipelines
·Overcomes axial offset and guarantees a permanently leaktight connection
·Can be delivered in standard and non-standard designs
·Easy installation, reduce assembling time
·Epoxy powder coating and bolting made of steel
·Drinking water approved
Looking for ideal Flexible Coupling Disc Coupling Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Flexible Coupling are quality guaranteed. We are China Origin Factory of Flexible Coupling Pipe. If you have any question, please feel free to contact us.
Specifications
|
Nominal diameter:
|
DN50mm to DN3000mm
|
|
Maximum working pressure:
|
4.0 Mpa
|
|
Vacuum KPa(mmHg)
|
44.9(350)
|
|
Operating temperature:
|
-20℃-80℃
|
|
Corrosion resistance
|
Good
|
|
Applicable media
|
Sea water, drinking water, slurry, industrial sewage.
|
Components/Materials/Functions
|
No.
|
Components
|
Materials
|
 |
|
1
|
Sleeve
|
Ductile Iron
|
|
|
2
|
Gland
|
Ductile Iron
|
|
|
3
|
Gasket
|
Rubber
|
|
|
4
|
Bolt & Nut
|
Carbon Steel
|

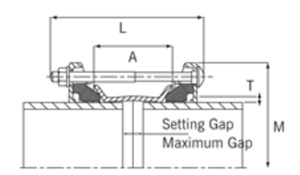

Data Sheet:
|
DN(mm)
|
Size Range(mm)
|
Pipe OD(mm)
|
L(mm)
|
Sleeve
|
Bolts
|
Weight(kg)
|
||||
|
Length
|
Thickness
|
|||||||||
|
Min
|
Max
|
A
|
T
|
No.
|
Dia.
|
Length
|
||||
|
40
|
48
|
60
|
149.5
|
190
|
100x4.5
|
40
|
2
|
12
|
180
|
3.1
|
|
50
|
59
|
72
|
154.5
|
190
|
95x4.5
|
40
|
4
|
12
|
180
|
3.0
|
|
65
|
72
|
85
|
173.5
|
190
|
95x4.5
|
40
|
4
|
12
|
180
|
3.6
|
|
80
|
88
|
103
|
195.5
|
190
|
95x4.5
|
40
|
4
|
12
|
180
|
4.1
|
|
100
|
108
|
128
|
224.5
|
190
|
95x4.5
|
40
|
4
|
12
|
180
|
4.8
|
|
125
|
138
|
153
|
254.5
|
190
|
95x5.0
|
40
|
4
|
12
|
180
|
6.0
|
|
150
|
159
|
182
|
280.5
|
190
|
95x5.0
|
40
|
4
|
12
|
180
|
6.9
|
|
175
|
192
|
210
|
306.5
|
230
|
130x5.0
|
50
|
4
|
12
|
220
|
9.4
|
|
200
|
218
|
235
|
342.5
|
230
|
130x5.0
|
50
|
4
|
12
|
220
|
10.9
|
|
225
|
250
|
267
|
367.5
|
230
|
130x5.0
|
50
|
6
|
12
|
220
|
12.4
|
|
250
|
272
|
289
|
399.5
|
230
|
130x5.0
|
50
|
6
|
12
|
220
|
14.6
|
|
300
|
315
|
332
|
462.5
|
230
|
130x5.0
|
50
|
8
|
12
|
220
|
19.4
|
