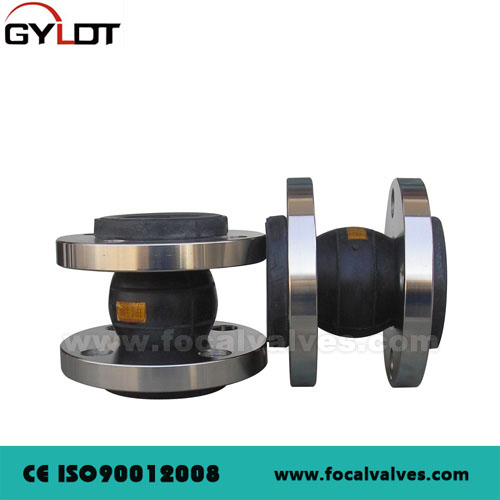

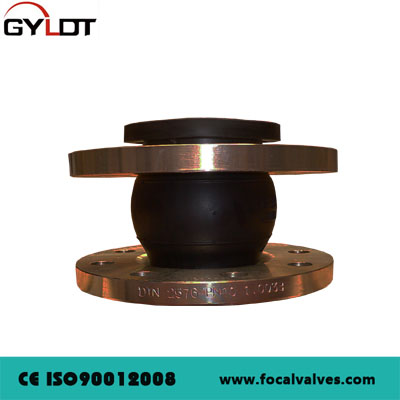

Single Arch Rubber Joint
Single arch rubber joints, also known as single sphere rubber joints, are designed for piping systems to absorb pipe movements, relieve stress, reduce system noise/vibration, compensate for misalignment/offset and to protect rotating mechanical equipment against start-up surge forces.
Features and Benefits
·Absorbs directional movement
·Absorbs vibration, noise and shock
·Compensates for misalignment
·Wide flowing arch design
·Economical fully molded construction
·Special grooved flange ring design, prevent rubber end pulling out
·Solid galvanized steel floating flanges speed the installation time
·No gaskets required; integrally rubber flanged design
Looking for ideal Rubber Joint Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Expansion Joint Rubber are quality guaranteed. We are China Origin Factory of Single Arch Rubber Joint. If you have any question, please feel free to contact us.
Specifications
|
Nominal diameter:
|
DN25mm to DN3000mm
|
|
Maximum working pressure:
|
2.5 Mpa
|
|
Vacuum KPa(mmHg)
|
44.9(350)
|
|
Operating temperature:
|
-20℃-100℃
|
|
Corrosion resistance
|
Good |
|
Applicable media
|
Sea water, drinking water, slurry, industrial sewage.
|
Components/Materials/Functions
|
NO.
|
Components
|
Materials
|
Functions
|
 |
|
1
|
Rubber Bellows
|
EPDM/NR/NBR
|
Body
|
|
|
2
|
Ring Flange
|
Carbon Steel
|
Fasten
|
|
|
3
|
Steel Ring
|
Mild Steel
|
Reinforce
|
|
|
4
|
Tire Cord
|
Nylon
|
Reinforce
|
|
|
5
|
Arch Design
|
EPDM/NR/NBR
|
Reduce turbulence
|
|
|
6
|
Holding-on Design
|
/
|
Prevent Pulling Out
|

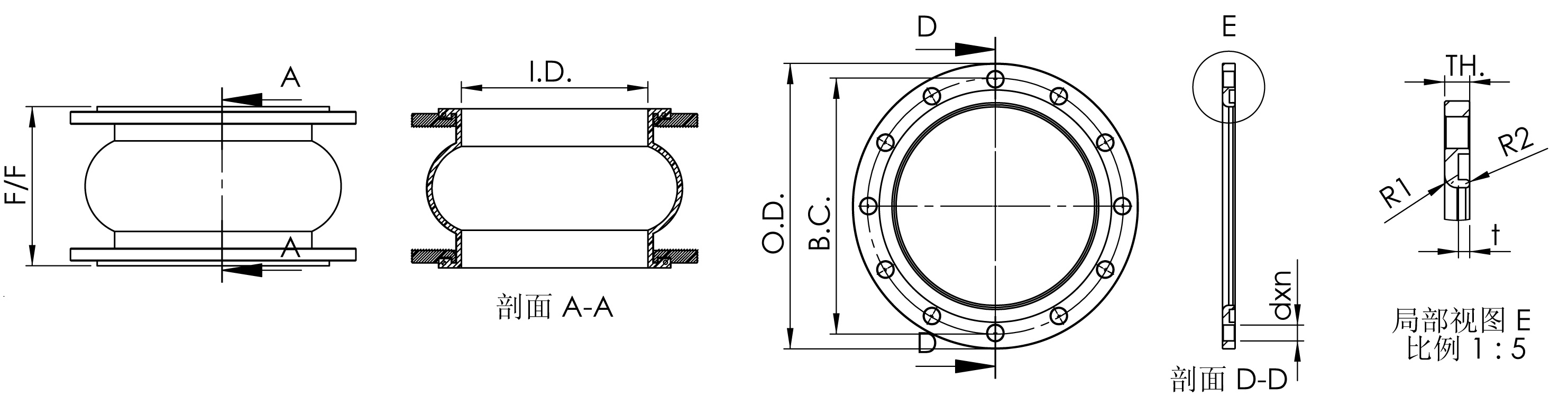

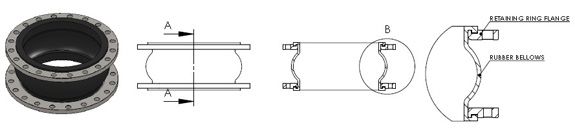

Design:

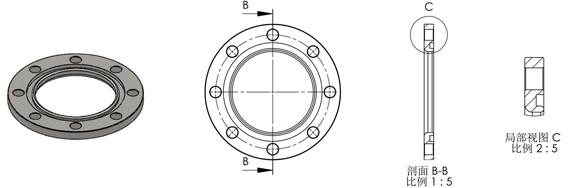

Grooved Flange Design:
Data Sheet:
\|
SIZE
|
LENGTH
|
MAX
|
VACUUM
|
Movement Capability(mm)
|
Flange details-DIN PN16
|
Prox.
|
||||||||
|
I.D.
|
F/F
|
Pressure
|
Rating
|
Comp.
|
Ext.
|
Lateral
|
Angular
|
Torsional
|
O.D.
|
B.C.
|
Holes
|
Hole
|
TH.
|
Weight
|
|
(mm)
|
(mm)
|
(bar)
|
(mm Hg)
|
(mm)
|
(mm)
|
(mm)
|
(degree)
|
(degree)
|
(mm)
|
(mm)
|
(no.)
|
(mm)
|
(mm)
|
(kg)
|
|
32
|
95
|
20
|
760
|
9
|
6
|
9
|
15
|
4
|
140
|
100
|
4
|
18
|
14
|
3
|
|
40
|
95
|
20
|
760
|
10
|
6
|
9
|
15
|
3.5
|
150
|
110
|
4
|
18
|
14
|
3
|
|
50
|
105
|
20
|
760
|
10
|
7
|
10
|
15
|
3.3
|
165
|
125
|
4
|
18
|
14
|
4
|
|
65
|
115
|
20
|
760
|
13
|
7
|
11
|
15
|
3.2
|
185
|
145
|
4
|
18
|
15
|
5
|
|
80
|
135
|
20
|
760
|
15
|
8
|
12
|
15
|
3.1
|
200
|
160
|
8
|
18
|
15
|
6
|
|
100
|
150
|
16
|
700
|
19
|
10
|
13
|
15
|
2.9
|
220
|
180
|
8
|
18
|
15
|
8
|
|
125
|
165
|
16
|
700
|
19
|
12
|
13
|
15
|
2.8
|
250
|
210
|
8
|
18
|
15
|
10
|
|
150
|
180
|
16
|
700
|
20
|
12
|
14
|
15
|
2.7
|
285
|
240
|
8
|
23
|
20
|
13
|
|
200
|
210
|
16
|
700
|
25
|
16
|
22
|
15
|
2.6
|
340
|
295
|
12
|
23
|
20
|
19
|
|
250
|
230
|
16
|
700
|
25
|
16
|
22
|
15
|
2.5
|
405
|
355
|
12
|
26
|
20
|
28
|
|
300
|
245
|
16
|
700
|
25
|
16
|
22
|
15
|
2.4
|
460
|
410
|
12
|
26
|
22
|
35
|
|
350
|
255
|
10
|
600
|
25
|
16
|
22
|
15
|
2.3
|
520
|
470
|
16
|
26
|
22
|
51
|
|
400
|
255
|
10
|
600
|
25
|
16
|
22
|
15
|
2.2
|
580
|
525
|
16
|
30
|
22
|
66
|
|
450
|
255
|
10
|
600
|
25
|
16
|
22
|
15
|
2.1
|
640
|
585
|
20
|
30
|
25
|
78
|
|
500
|
255
|
10
|
600
|
25
|
16
|
22
|
15
|
1.8
|
715
|
650
|
20
|
34
|
25
|
103
|
|
600
|
260
|
10
|
600
|
25
|
16
|
22
|
15
|
1.6
|
840
|
770
|
20
|
36
|
25
|
149
|
|
700
|
260
|
6
|
550
|
25
|
16
|
22
|
15
|
1.4
|
910
|
840
|
24
|
36
|
28
|
148
|
|
800
|
260
|
6
|
550
|
25
|
16
|
22
|
15
|
1.2
|
1025
|
950
|
24
|
39
|
28
|
191
|
|
900
|
260
|
6
|
550
|
25
|
16
|
22
|
15
|
1
|
1125
|
1050
|
28
|
39
|
28
|
217
|
|
1000
|
260
|
6
|
550
|
26
|
18
|
24
|
15
|
1
|
1225
|
1170
|
28
|
42
|
28
|
269
|
|
1200
|
260
|
6
|
550
|
26
|
18
|
24
|
15
|
1
|
1485
|
1390
|
32
|
48
|
28
|
337
|
NOTES:
1. Supply range can be up to DN3000, detailed data can be offered upon request.
2. Control units must be used when piping is not properly anchored.
3. The rated pressure can be above2.5MPa, but products will only be sold with control units.
4. Pressure rating is based on 30℃ operating temperature. The pressure rating is reduced at higher temperatures.
5. Weights in the above table are joints with DIN PN16 drilling retaining ring flanges.
6. Movements shown in the above table are non-concurrent.
7. Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times " work pressure".

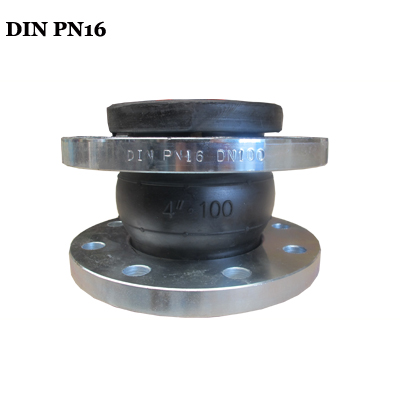

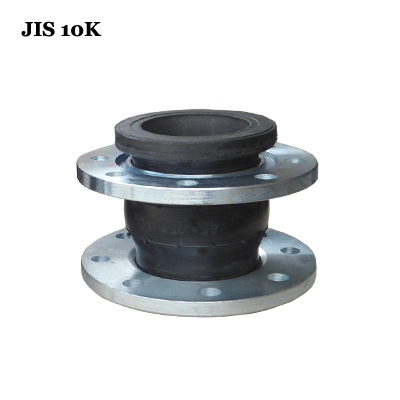

8. Normally, the flange drilling is based on DIN PN16, ANSI 150/250/300 lbs, BS PN10, JIS 10K are also available upon request.
